Tuesday, March 14, 2017

more new questions


UESTION 288
What three characteristics are components of mobility anchoring? (Choose three.)
- enabled on a per WLAN basis
restricts clients to a specific subnet
client traffic is tunneled to predefined WLC(s)


3 components of TKIP
- board cast key rotation
- MIC (message integrity check)
- Per packet hashing
- sequence counter
- key mixing


Which two attributes must be configured to match in order for WLCs to operate in the same mobility group? (Choose two.)


A. mobility domain name
B. virtual IP address

IMM New Question


Dynamic Frequency Selection Channels
When a DFS–enabled radio is operating on one of the following channels, the wireless device uses DFS to monitor the operating frequency and switch to another frequency or reduce power as necessary:
           52 (5260 MHz)
           56 (5280 MHz)
           60 (5300 MHz)
           64 (5320 MHz)
           100 (5500 MHz)
           104 (5520 MHz)
           108 (5540 MHz)
           112 (5560 MHz)
           116 (5580 MHz)
           120 (5600 MHz)
           124 (5620 MHz)
           128 (5640 MHz)
           132 (5660 MHz)
           136 (5680 MHz)
           140 (5700 MHz)






NEW 1:
What is max power for an AP for all regulatory bodies ? ( Or something close to that )

1)10
2)8
3)1
4)X

Answer: 3
Explanation: A value of 1 corresponds to the maximum power level that is allowed in the AP’s regulatory domain. (Chapter 13 of certification guide) (Double Checked by guilherme1846)

NEW 2:
What is the deployment that requires least amount of hardware installed on the site:

1)Cloud
2)Converged
3)Centralized
4)….

Answer: 1 (Double Checked by guilherme1846)

NEW 3:
What command can be used on the WLC to show the logs (or something) for an AP with the name Cisco_AP ?

1)show logging
2)show ap eventlog Cisco_AP
3) x
4) x

Answer: Don’t remember the other two options. I chose option 2, I think it’s the correct one

NEW 4:
What is the command used to debug an AP that is not able to join the WLC ?:

1)debug capwap events enable (on the WLC)
2)debug capwap events enable (on the AP)
3) x
4) x

Answer: Don’t remember the last two options, but I’m sure it’s choice No.1






NEW 5:
What are the channels you need to avoid not to have interference with DFS channels ?

1) 52
2) 136
3) 124
4) 161
5) something less than 50
Answer: I chose 52,136,124. Make sure you know what are the DFS Channels.

NEW 6:
What is required from the deployment when using voice or video applications, choose 3: (Something like that)

1) RSSI cell edge of -25
2) RSSI cell edge of -16
3) SNR of 25 ……
4) Cell Overlap of 20%
5) RSSI -67

Answer: 3,4,5
NEW 6:
What are the sources of interference you will find when conducting a site survery before deployment(Something like that)?

1-Bluetooth Headset
2-Microwave Ovens
3-Analog Wireless Camera
4-AdHoc Wireless Camera
5-AdHoc Hotspot

Answer: 2,3,5
NEW 7:
what are reqs for VoWLAN:
A) RSSI -67
B) SNR 25
C) 20% overlapping cells (not sure it’s true),
Answer: A,B,C


NEW 8:
what is SNR needed for 54 Mbps (data, voice – no remember)
A) SNR 25
Answer: A
NEW 9:
what is max level in Cisco WLC TPC for all regulatory domain
A) Power Level 1
Answer: A
Explanation: A value of 1 corresponds to the maximum power level that is allowed in the AP’s regulatory domain. (Chapter 13 of certification guide) (Double Checked by guilherme1846)
New 10:
Engineer needs an LAP to support few WLANs with different DHCP servers for different SSIDs, how to
fulfill this requirement?

A. configuring dynamic VLAN interfacesto SSIDs in AP group.
B. configure DHCP in AP settings advanced page
C. xxx
D. xxx

Answer:  I chose A. It should be correct.
New 11:
Which wireless survey you do considering the "infrastructure" in the building?

A. Passive
B. Active
C. Planning
D. xxx

Answer: I chose C. i guess it is wrong.

New 12:
What are the minimum requirements to operate cisco 7925 wireless phone.(choose 3)
A. RSSI -67
B. SNR 25
C. 20% cell overlapping
D. xxx

Answer: I chose A,B,C. It should be correct.

New 13:
Which WLC menu you use the check the assigned power level of an AP.
A. Wireless
B. Management
C. Controller
D. Monitor.

Answer: A
Explanation: (Double check by guilherme1846 according chapter 13 from Certification Guide)
New 14:
How much wireless cell overlapping is required for 5GHz voice and data roaming.
A. 5%
B. 10%
C. 15%
D. 20%

Answer: D

Explanation: How much should cells overlap each other to promote good roaming? Cisco recommends
10–15 percent overlap for most data applications and 15–20 percent overlap for voice.
(Double checked by guilherme1846 according chapter 7 from certification guide)

New 15:
What interference you will see when conducting a site survery (Choose 3)-similar Q in Doc file.
A. Microwave Ovens
B. Analog Wireless Camera
C. AdHoc Hotspot
D. Bluetooth link
E. xxx

Answer: I chose A,B,C. It should be correct.

New 16:
Which CLI command you use in WLC to update the running IOS.

Answer: I chose the one with "TFTP" in the answer. all other 3 seemed not correct.
·  Issue the transfer download mode tftp command in order to define the mode of file transfer.
·  Issue the transfer download serverip TFTP_server_IP_address command in order to define the TFTP server IP address.
·  Issue the transfer download path 'TFTP_server_path' command in order to define the path of the TFTP default directory where the controller OS software is located.
·  Issue the transfer download filename filename command in order to specify the name of the image.
Here is an example:
(Cisco Controller) >transfer download datatype code
(Cisco Controller) >transfer download mode tftp
(Cisco Controller) >transfer download serverip 10.77.244.196
(Cisco Controller) >transfer download path .
(Cisco Controller) >transfer download filename AIR-WLC4400-K9-5-2-178-0.aes


New 17:
How much SNR needed to reach 54Mbps in 802.11g network?
A. 25
B. 10
C. XX


Answer: I Chose A. (Higher SNR better throughput, so I think 25 it’s the correct one)
Data rate               minimum Signal       minimum SNR
54 Mbps                       -71dBm                      25 dB
36 Mbps                       -73dBm                      18 dB
24 Mbps                       -77dBm                      12 dB
10/11 Mbps                  -82dBm                      10 dB
6/5.5 Mbps                   -89dBm                      8 dB



New 18:
Which software you can use to do both active and passive site surveys?

A. Fluke networks Airmagnet Pro
B. Fluke networks Airmagnet lite (or something like that)
C. Cisco spectrum analyzer
D. xxx

Answer: I chose A. Not sure.


New 19:
How Cisco spectrum analyzer analyse the scanned data (something like that)
A. Store scanned data during wifi scan and analyze later.

Answer: I chose A, not sure. dont remember other choices.

New 20:
Some new question about Anchor controller. Sorry dont remember.


Sunday, March 12, 2017

new question

new question about counting db+dbi+db+db so you need to know that. Also had one ” What are two characteristics about mobilty anchor?”


One question on 2.4GHz, how many channels and so on. (14 channel 2.412 to 2.484 Ghz range)
FCC (US): 11 channel, non-overlapping 1, 6, 11
ESTI (Europe): 13 channels, non-overlalpping 1, 5, 9, 13
Japan: 14 channels, non-overlapping 1, 6, 11, 14

Which tool would you use for x survery (I think it was passive survery, can’t remember)
A couple of command questions
One I’m pretty sure I got wrong was
Which tab on the WLC would you use to view AP connectivity
A) Management
B) WLAN
C) Wireless
D) AP Manager


Wireless > ALL APs General Tab to check the APs CAPWAP setting. Refer to the IP Config section to view if the AP's CAPWAP Preferred Mode is applied globally or for an AP-Group.
How much cell overlap for 2.4GHz?
A 5%
B 10%
C 15%
D 20%
How much should cells overlap each other to promote good roaming? Cisco recommends 10–15 percent overlap for most data applications and 15–20 percent overlap for voice. The idea is to give a client device some continued coverage even after the RSSI of its associated AP falls below a threshold and a roam might be triggered. The client can probe and reas- sociate with the next AP before it completely loses contact with the previous AP. Seamless roaming is especially important for time-critical applications like voice traffic.


I’m going to try and find the answers to the questions I got and hope I get the same questions again in a weeks time. Failing by 1% is painful…..

Saturday, March 11, 2017

ESTI

ESTI 2.4GHz max Transmit output power for point-to-point installation
17 dbm

i guys. I passed today. 9xx/1000. IMM doc every new question added there were in my exam. Other part was from 410 dumps. No wcs no drag and drop. Just an advice, you cant pass only with this. You should read cerfully the question because is from 410 dumps but is changed the meaning or the alternatives. Added were: upgrating IOS-XE. or how do we use spectrum analyser, or three points for wlc roaming workd (i have read that the third condition is software version, but in exam the meaning alternative was different LWAPP, and i dont know if is the correct one. Good luck to everyone. 🙂

Friday, March 10, 2017

Max EIRP regulated from FCC (US) and ESTI (Europe)

FCC (US)

Transmitters in the 2.4-GHz band can be used indoors or outdoors.
  • The power emitted at the transmitter must be limited to 30 dBm
  • the EIRP limited to 36 dBm.
An antenna gain of +6 dBi is assumed. However, there is some flexibility according  to the following two rules, based on the intended spread of the signal:

■ Point-to-multipoint links
—Where the  transmitted signal propagates in all directions, you can make adjustments according to a 1:1  rule. For each dBm you remove from the trans-mitter, one dBi can be added to the antenna gain, as long as the EIRP is no greater than 36 dBm.

■ Point-to-point links
—Where the transmitted  signal propagates in one general direc-tion, you can make adjustments according to a 3:1 rule. For each dBm you remove from the transmitter, 3 dBi can be added to the antenna gain. The resulting EIRP canexceed 36 dBm but cannot be greater than 56 dBm.

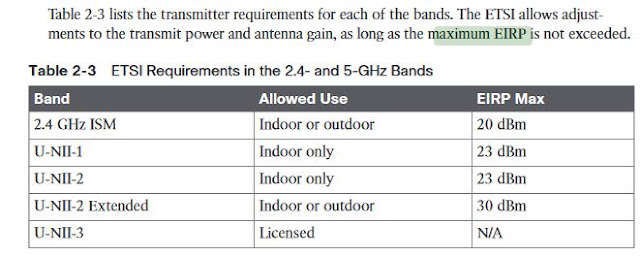

ETSI

Received Signal Strength Calculation

Rx Signal = Tx Power – Tx Cable + Tx Antenna – Free Space + Rx Antenna – Rx Cable

CCNA Wireless 200-355 Official Cert Guide

http://dl.derakht.co/media/cisco/document/Cisco.Press.CCNA.Wireless.200-355.Official.Cert.Guide.pdf

Regualatory domain Frequency Channel


2.4 ghz features (11 channel, 14 channel, FCC decide 14 channel, max 100mW power allowded or max 100W allowded from FCC.


The 2.4 GHz band regulations have been relatively constant, given the length of time they have been operating.
  • FCC allows for 11 channels,
  • ETSI allows for up to 13channels
  • Japan allows up to14 channels, but requires a special license to operate in channel 14.
For 5 GHz, countries are moving to open the frequency range 5.250-5.350 GHz (UNII-2) and the
frequency range 5.470 to 5.780 GHz for additional 802.11a channels.

5 GHz - 802.11a/n/ac
  • 5.150 to 5.250 GHz (UNII-1 - 4 Channels 36-48)
  • 5.250 to 5.350 GHz (UNII-2 - 4 Channels 52-64)
  • 5.450 to 5.710 GHz (UNII-2e - 12 Channels 100-144)
  • 5.725 to 5.875 GHz (UNII-3 - 5 Channels 140-165)

IOS-XE commands

Q: upgrading code image by installing an IOS-XE image bundle with command:
  • switch# software install filesource:filename.bin new
Q: Remove redundant or extraneous packages with the following command:
  • Switch# software clean file flash: switch

Q: Which type of file is included within the IOS-XE software bundle?
  • C. .bin files

Q: You have been tasked with backing up the configuration for your WLCs. The WLCs are running IOS-XE and you want to save the backups to an FTP server. Which two backup options can be used to complete the task? ( (Choose two)
  • A. Use the copy running-config tftp all command. Input the IP Address of the remote server. Input the destination filename.
  • C. Use the Upload File Menu from the Wireless GUI. Specify the File type as Configuration. Select the Transfer Mode.


Q: Which AireOS WLC CLI show commands details both an access point's name and serial number?
  • C. show inventory


Thursday, March 9, 2017

FCC Rules and Regulations

https://www.air802.com/files/Air802_Conversion_Table_dBm_to_watt.pdf

https://www.air802.com/fcc-rules-and-regulations.html

Wednesday, March 8, 2017

new questions

No labs/drag and drop; just single choice and multiple choice. I can’t remember the questions from the exam because I was really nervous LOL–sorry!
However, I do recall questions about mobility anchor, IOS XE upgrade, and max EIRP for some regions (FCC, ETSI).

@JD upgrading IOS-XE (software install…. code.bin) theres no question about n LAP needs to support Wlans Different DHCP and SSIDs. Some answers were two instead of three or 1 instead of two, or put aswers with same meaning like 2.4 ghz features (11 channel, 14 channel, FCC decide 14 channel, max 100mW power allowded or max 100W allowded from FCC. As a told you should understand the meaning of the dumbps not just learning them because can easy choose the wrong alternative. I will check maybe later with some dumps and maybe i will remember some of them.

Learn IOS XE software install commands, EIRP, watts to dbm calculations…etc. carefully!

Wednesday, March 1, 2017

Assuming 69dB free space loss (Hmm...)

Q70: Assuming 69dB free space loss.
Tx – cable loss + antenna gain – FSL + antenna gain – cable loss = Rx
TX = Rx + cable loss – antenna gain + FSL – antenna gain + cable loss
Tx = -45 + 4 -2 +69 – 2 + 4 = +28dBm

New Questions

From the DOC
NEW 6:
What is required from the deployment when using voice or video applications, choose 3: (Something like that)
SNR 25
RSSI -67
Cell Overlap of 20%
NEW 6:
What are the sources of interference you will find when conducting a site survery before deployment(Something like that)?
1-Bluetooth Headset
2-Microwave Ovens
3-Analog Wireless Camera
4-AdHoc Wireless Camera
5-AdHoc Hotspot
Answer: 2,3,5
NEW 7:
what are reqs for VoWLAN:
A) RSSI -67
B) SNR 25
C) 20% overlapping cells
Answer: Answers are correct
NEW 8:
what is SNR needed for 54 Mbps
SNR 25
NEW 9:
what is max level in Cisco WLC TPC for all regulatory domain
Answer: ? I selected 1
If you have any questions or concerns on specific questions just post and ill let you know how i answered
Remember 2.4Ghz needs 20% cell overlap 5Ghz needs 15%
Also take not i didnt get 100% on the test so i know some of my answers were wrong I am confident tho if you study the dump and doc you will pass.
